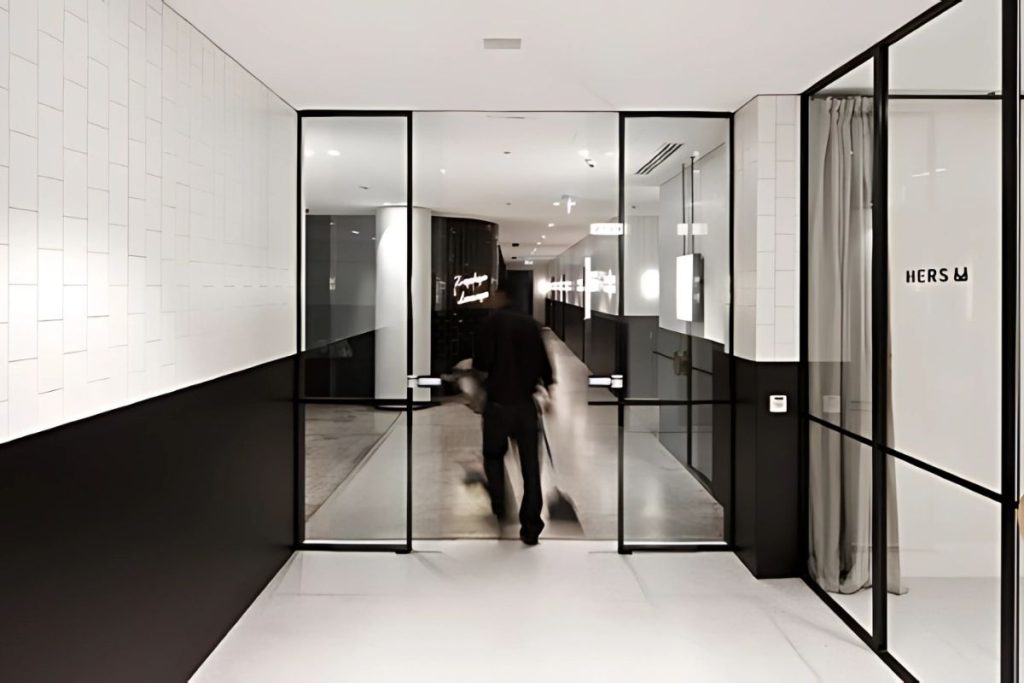

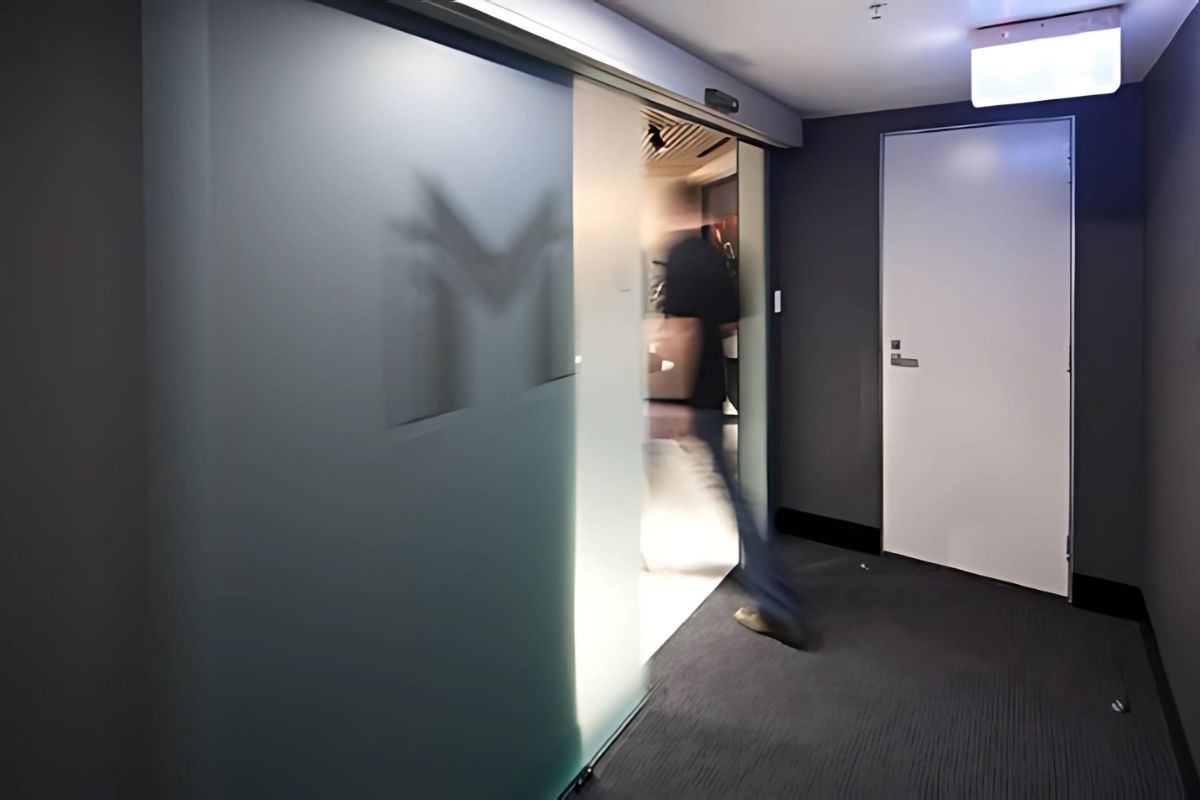

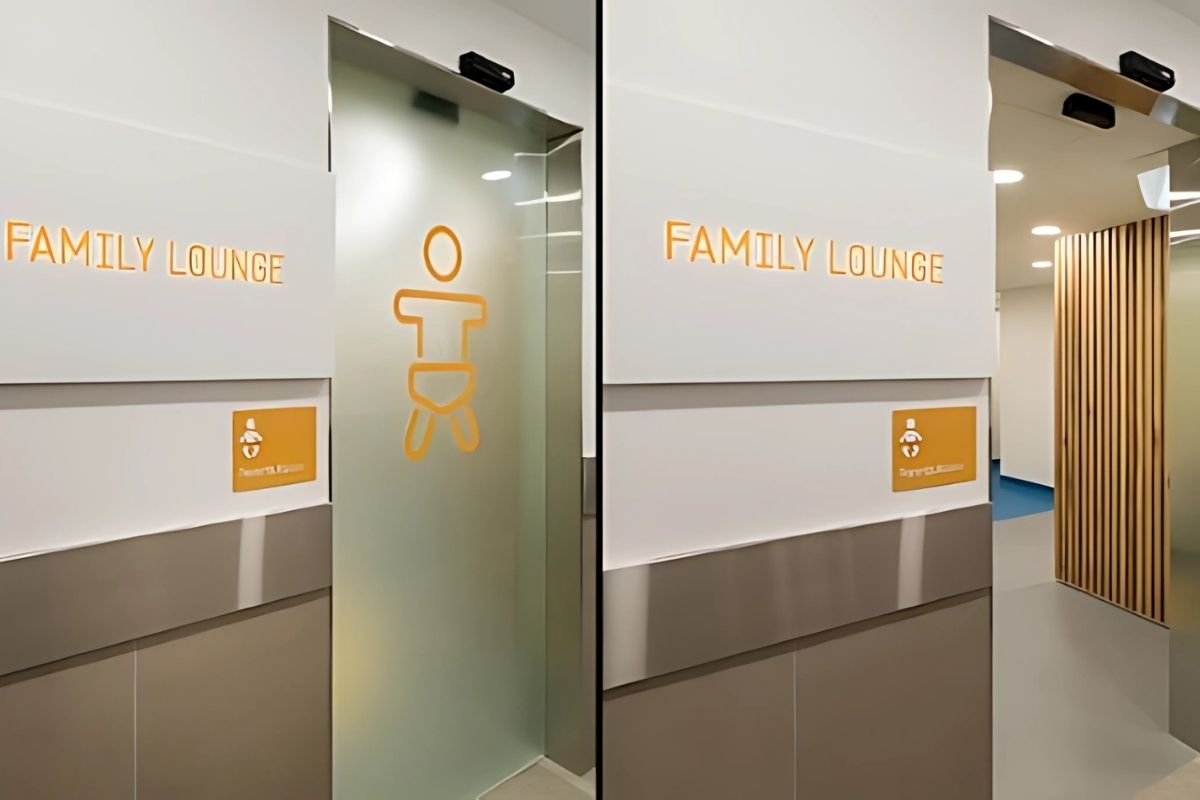

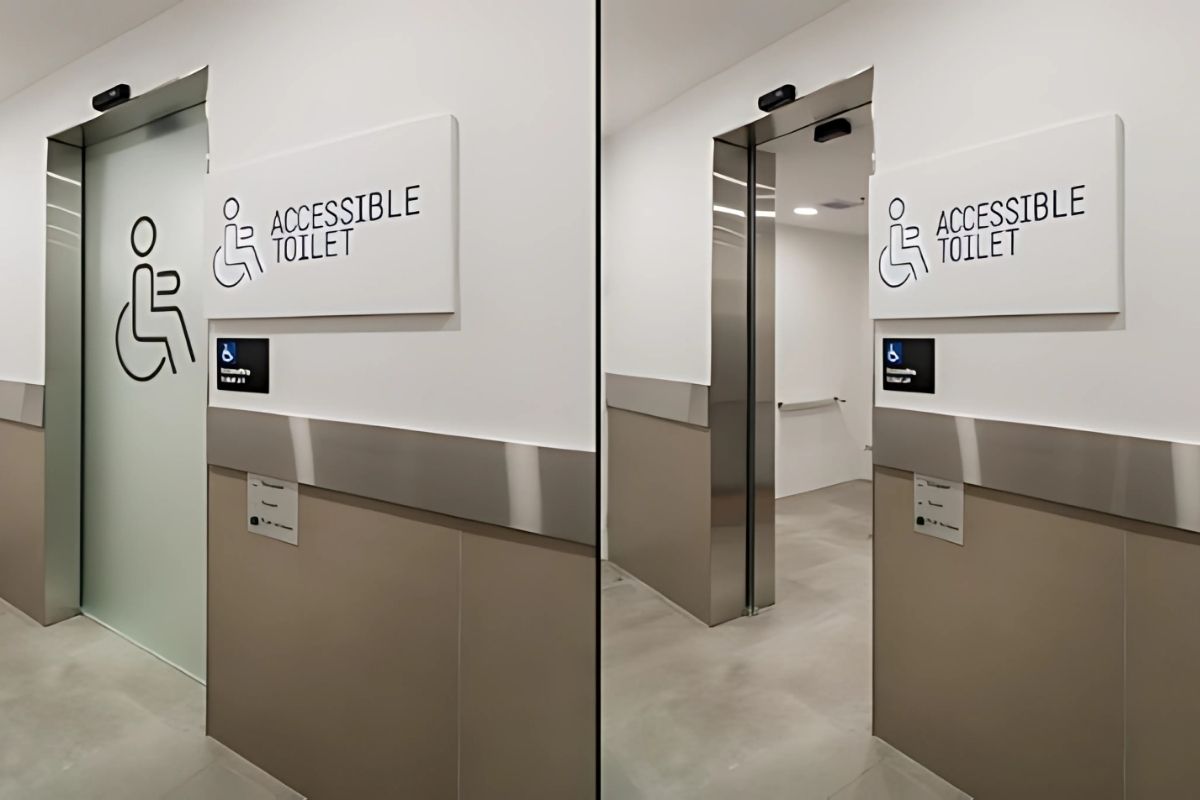

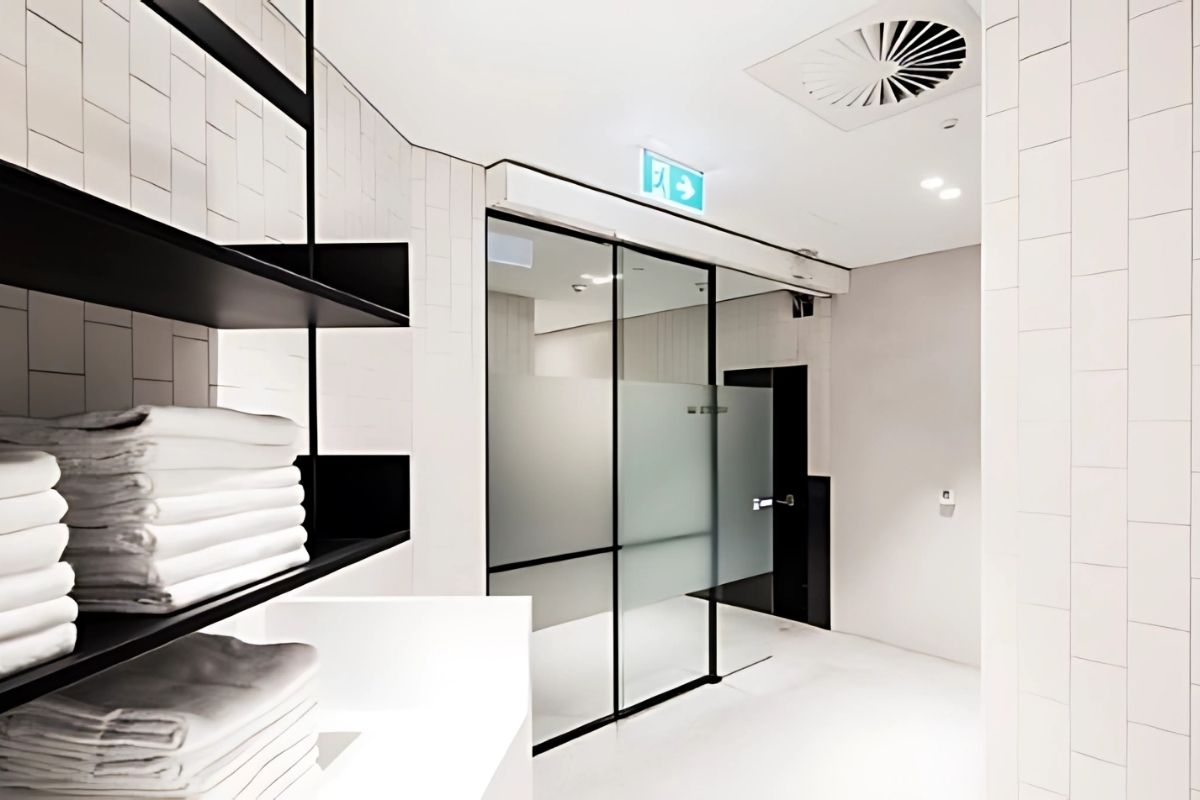

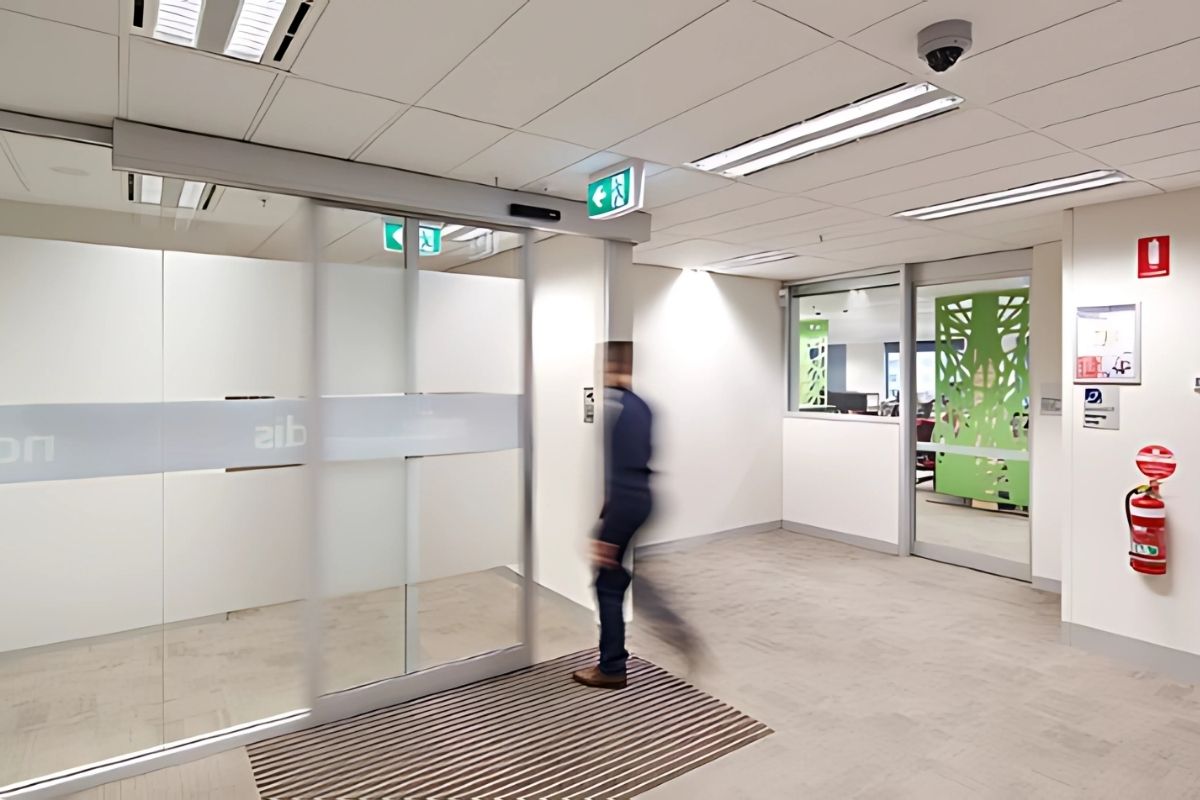

Automatic opening of light to medium weight linear sliding doors.
Based on the RECORD system 20, the RECORD STA 21 has been modified to suit a lower budget whilst still meeting the requirements of light to medium automatic doors in heavy-duty applications.
Utilising the same Swiss-engineered intelligence system enables the interactive exchange of information between the control system and the various activation and safety devices. The majority of the RECORD STA 21 components are shared with system 20, which has a proven track record in global markets but is fitted with smaller, lighter electrical door motors and a specially modified PLC.
The STA21 has opening widths of 850mm to 4,000mm and can accommodate automatic sliding door weights of up to 1 x 120kg, or 2 x 100kg at 100% duty rating.
Using the RECORD doors system 20, the STA 21 has been developed using modular construction principles. This allows the system to be adapted safely and efficiently to a wide range of conditions using the same precision-crafted components.
This results in benefits for the customer of shorter installation times and reduced automatic door service and maintenance costs.
-
Features
- Swiss made quality and reliability.
- NATA tested and approved to 1 million cycles at maximum door weights.
- World renowned for its whisper quiet operation and sleek profile height of only 108mm (LP) or 150mm.
- The drive unit can be fitted to the lintel, be freestanding or integrated in the ceiling.
- Failsafe electric motor brake locking with battery backup.
- Self-monitoring system with diagnostics.
- Low noise, long life, replaceable track system.
- Matching profiles for standard and telescopic units.
- C. (direct current) brush-less motor with monitoring electronics, inbuilt multi-point electronic locking, generator brake and integrated, beveled worm drive gearbox, in metal casing.
- A fully computerised 32-Bit processor incorporates BMS feedback, multiple programmable inputs, solid state switching of motor/gearbox and full memory backup of all settings in case of power failure.
- Anti-shock dynamic braking, to provide smooth and effective braking, automatically set during calibration to suit size and weight of door leaf/s.
- Safety reverse/stop with delay, in case of obstruction during either opening or closing cycle. Low speed, continuous retry after obstruction, prior to resuming normal operation.
- Infinitely adjustable speed control, to 700mm per second in opening and closing cycle.
- Adjustable hold open time, (variable in both summer and winter modes) to suit site requirement for time door is held open between open and close cycles.
- Integrated selection for security, fire or smoke alarm interfacing and lock/door monitoring.
- LED mode switch, with customer simple programming options, including standard settings for; Manual, Auto, reduced width, hold open, exit only or locking operation. A customer handbook is provided.
- Inverter failsafe with Dual battery back-up for continuous operation in a power failure and in compliance with the BCA D2.19 and AS 5007-2007.
- Track wheels that will last in excess of 10 years.
-
Benefits
- Modular construction enables the construction of a wide range of door models and applications.
- Can be adapted to suit the widest range of conditions.
- Shorter installation time and reduced service and maintenance costs.
- Meets all relevant national and international guidelines and Australian Standards.
- System learning capacity reduces the potential of the unit to malfunction.
-
General Technical Specification
RECORD STA21
- Width of passage: 800 – 4000mm
- Total height: 108/150/200 mm
- Door leaf weight: 2 x 100kg, 1 x 120kg
- Power supply voltage: 100 – 240V AC
- Rated power: 90W
Drive Dimensions
- Without side piece (depth x height): 157 x 108 / 150 or 160 x 200mm
- Adjustable parameters.
- Door movement: 1.0s / 0.7
Operating conditions
- Ambient temperature: –15°C to +50°C
- Humidity range: Up to 85% rel. humidity, non-condensing
